Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

Name: Parallel Operation Ready 48V 55kw 62kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring
Brand: 1stess
Price: 1 USD

Buy cheap Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring product

Brand Name : 1stess

Model Number : GM (PV60-500VDC) 6200-48PL

Certification : CE, IEC

Place of Origin : China

MOQ : 1 piece

Price : To be negotiated

Payment Terms : L/C,T/T

Supply Ability : 2000 pieces per month

Delivery Time : 30 days

Packaging Details : carton box

Charging Mode : MPPT

Operating Temperature : -10°C To 50°C

Inverter Type : Off Grid inverter

Frequency : 50Hz/60Hz

Nominal Output Voltage : 220VAC/230/240VAC

Communication Interface : RS232+RS485+ External CT Port

Acceptable Input Voltage Range : 170-280VAC or 90-280VAC

Size : 450*300*130mm

Waveform : Pure Sine wave

Output Current : 120A

Weight : 12kg

Contact Now

Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

Key Features

Self-consumption and Feed-in to the grid
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Backflow prevention via external CT sensor and grid connection function
Parallel operation up to 12 units in 1-phase or 3-phase

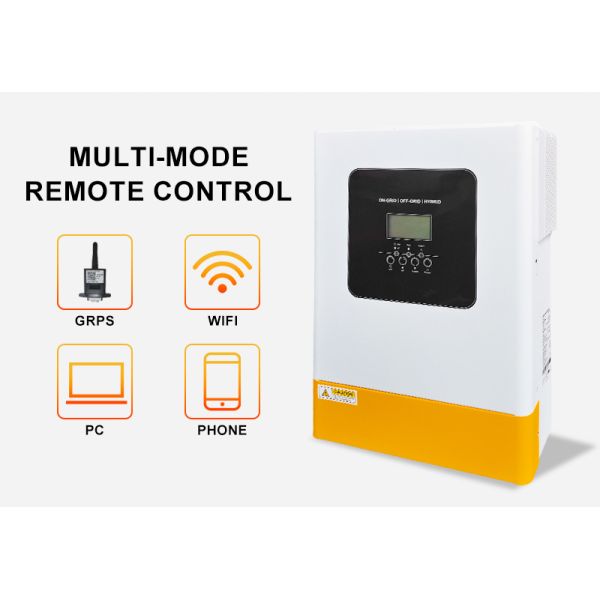

Direct Plug WiFi Dongle Supported
Output power factor 1.0
High PV input voltage range 500Vdc Max
Built-in MPPT solar controller 100/120A
WiFi remote monitoring optional
Detachable dust cover for harsh environment
User-adjustable charging current and voltage
Programmable supply priority for PV, Battery or Grid
Support multiple output priority: SBU/SUB/SUF/ZEC
EQ function to optimize battery performance and extend lifecycle

Technical Specifications

Parameter	GM5500-48PL	GM5500-48PL
Phase	1-Phase In/1-Phase Out	1-Phase In/1-Phase Out
Maximum PV input power	5500W	6500W
Nominal Output Voltage	220/230/240VAC	220/230/240VAC
Waveform	Pure Sine wave	Pure Sine wave
Battery Voltage	48VDC	48VDC
Communication Port	RS232+RS485+External CT Port	RS232+RS485+External CT Port
Max. Solar Charge Current	100A	120A
Dimension, D x W x H(mm)	448315122	450x300x130

Product Images

Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

Southeast Asia: Mastering Monsoon Climates and Grid Instability

Target Countries: Philippines, Indonesia, Vietnam, Thailand, Malaysia.

Market Insight: The ASEAN region is projected to be the fastest-growing market for hybrid inverters, driven by frequent grid fluctuations and a rapid shift toward residential solar.

Regional Challenges & The GM Series Solution:

Southeast Asia presents a paradox: abundant sunshine interrupted by prolonged monsoon rains, coupled with aging grid infrastructure. For businesses and homeowners, power stability is not a luxury but a necessity.

The GM Series directly addresses this with its wide MPPT voltage range (60-500VDC). This feature is critical in overcast conditions; it allows the inverter to harvest energy during low-light periods at dawn and dusk, as well as during heavy cloud cover, maximizing the "self-consumption" window. Furthermore, the user-adjustable charging current is a vital tool for protecting expensive battery assets in tropical heat, allowing installers to fine-tune parameters to extend battery life. The programmable supply priority (SBU/SUB) ensures that critical loads remain powered seamlessly, automatically switching to battery mode during the grid sags common to developing island nations.
